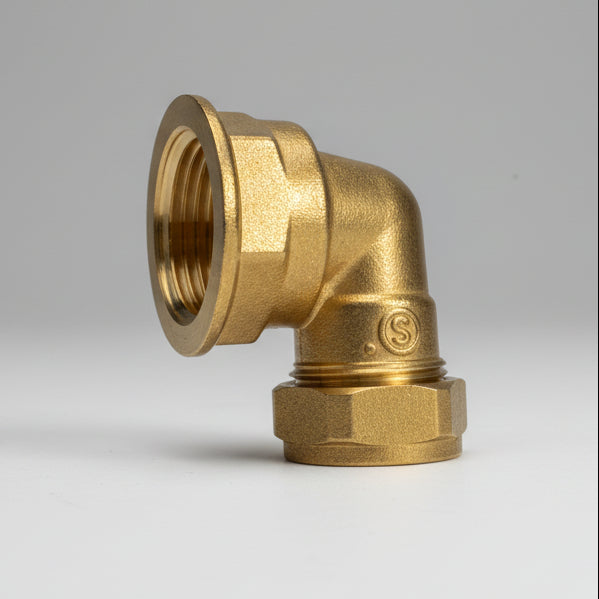

317 Irish Compression Elbow (Offset)

The 317 Elbow Offset is a brass compression fitting designed to create a 90-degree transition between Irish Imperial pipe and a component with an external thread of a different size. This fitting features a compression connection on one end and an internal BSP threaded connection on the other, allowing for a reduction or increase in size between the pipework and the threaded component. Manufactured to IS EN 1254-2 standards for the Irish market, it ensures a reliable fit for Irish copper and PEX pipe. Its right-angle design is ideal for connecting pipework to gauges, sensors, or heating equipment where space is limited and the thread size differs from the pipe diameter.

Key Features

• Manufactured to IS EN 1254-2 standards

• High-grade durable brass construction

• 90-degree offset sizing for transitioning between pipe and different internal thread diameters

• Compatible with Irish Imperial copper and PEX barrier pipe

• Suitable for domestic, commercial, and industrial heating and water systems

• Provides a secure mechanical joint without soldering

Technical Note

These are Irish Imperial fittings. The compression end is specifically sized for the Irish market and is not compatible with UK or European metric pipe. For the internal threaded connection, use a suitable thread sealant or PTFE tape to ensure a watertight seal. When using with PEX or Qualpex pipe, the correct size pipe insert or liner must be installed to maintain the integrity of the joint.

Compression fittings are sized and described by the threaded side first, followed by the pipe diameter.
