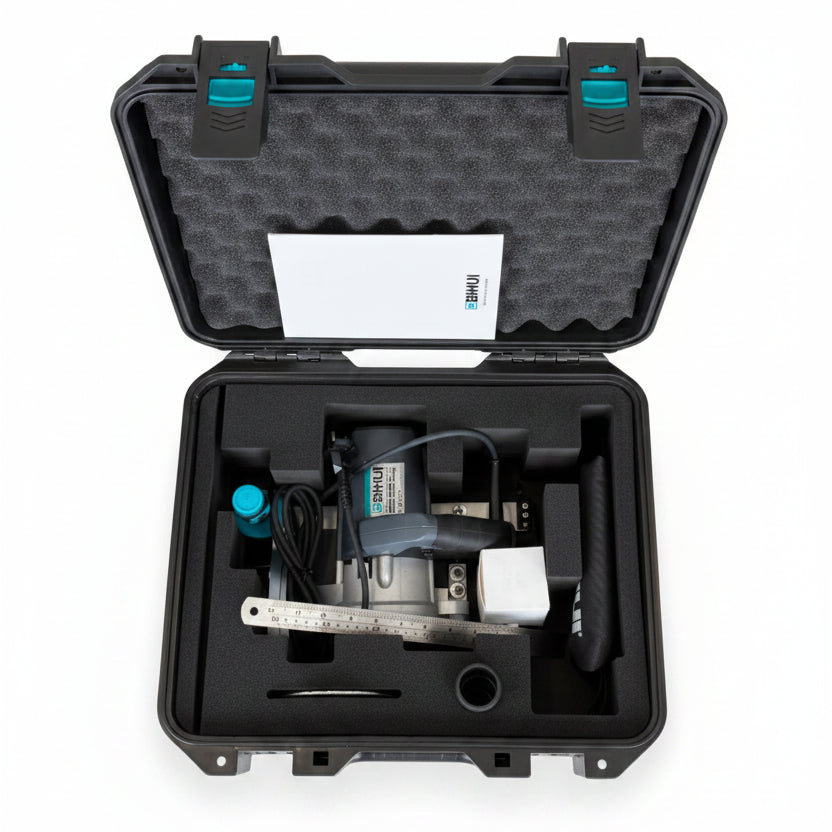

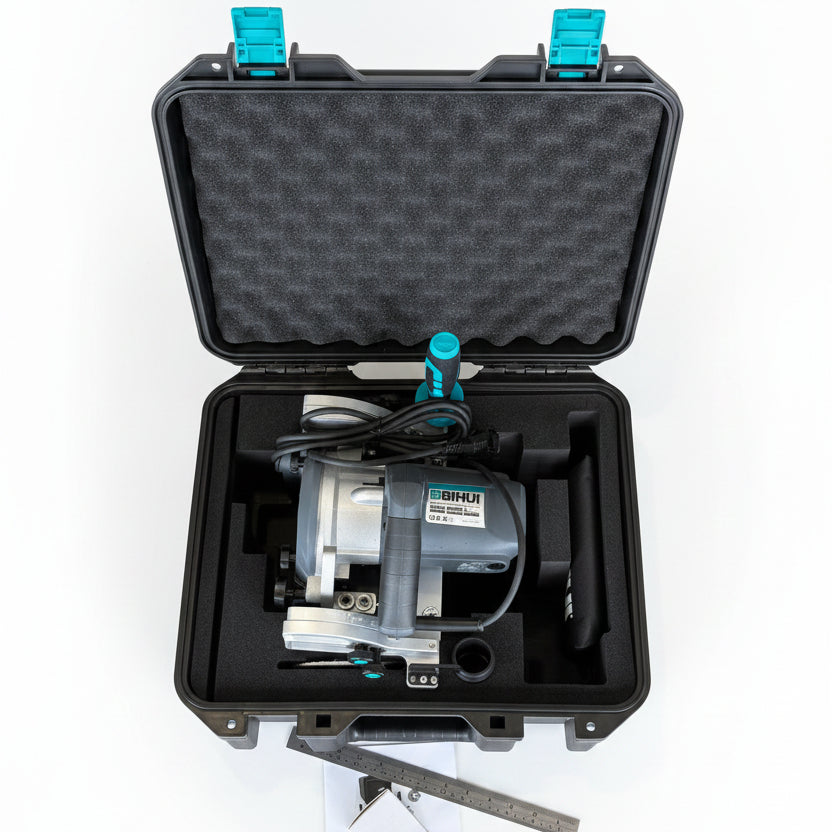

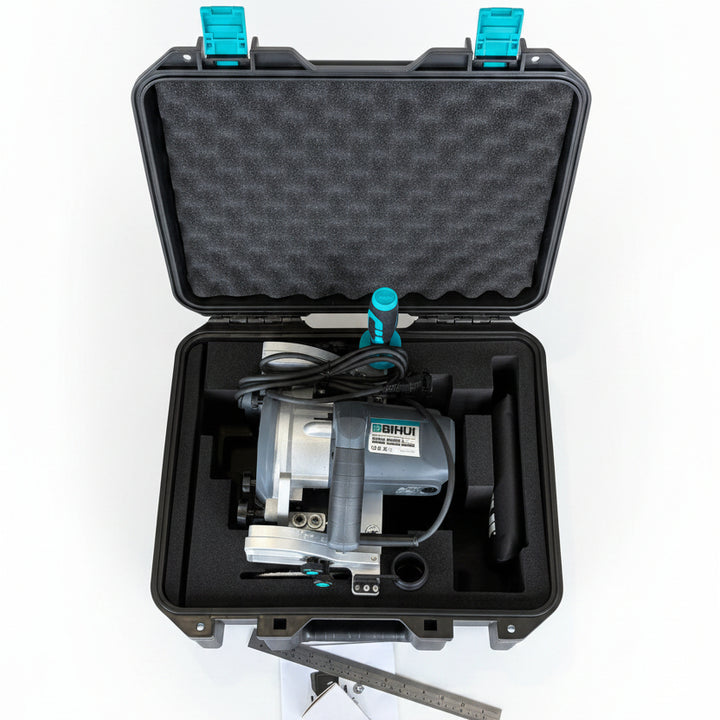

Bihui 1500W Large Format Electric Tile Cutting System (3.2m Capacity)

The Bihui Large Format Electric Tile Cutting System is a professional-grade, high-capacity power tool setup engineered specifically for handling modern ultra-oversized slab tiles. Designed to execute flawless, dust-controlled straight cuts and precise mitres on materials up to an incredible 3.2 metres in length, this heavy-duty system is highly recommended for commercial tilers and stone fabricators. Powered by a high-torque 1,500W motor spinning at 13,000 RPM, it provides the clean, vibration-free tracking required to slice cleanly through dense porcelain, sintered stone, and large natural marble slabs without chipping delicate factory glazes.

Why Choose the Bihui Large Format Electric Tile Cutting System?

• Innovative "Two Systems, One Rail" Design: The electric saw unit is fully compatible with the guide rails from the companion manual slim line slab cutting system. This layout is highly optimised for contractors, allowing you to seamlessly swap between manual scoring and heavy-duty electric plunge cutting on the exact same rail setup without purchasing separate guide tracks.

• Versatile 90° Straight and 45° Bevel Cutting: Built with an adjustable, precision-machined tilting base plate. The system switches effortlessly between crisp 90-degree square cutting and true 45-degree bevel tilting, allowing you to fabricate immaculate mitred (jolly) external corners directly on-site.

• Impressive Commercial Cutting Depths: The high-velocity plunge mechanism delivers clean cuts across a wide spectrum of material thicknesses:

  • 17mm maximum cutting depth when configured for standard 90° straight cuts.

  • 15mm maximum cutting depth when tilted for 45° angle miter profiles.

• Industrial-Grade 1,500W Motor Drive: The CE-approved 230V powerhead operates at a blistering 13,000 RPM. This high-velocity rotational speed prevents blade binding, lowers operator pushing effort, and ensures a mirror-smooth cut edge that matches factory standards.

• Massive 3.2-Metre Slab Capacity: Spanning up to 3.2 metres, this rail system allows you to accurately process full-sized kitchen island slabs, grand bathroom panels, and expansive outdoor porcelain paving tiles without running out of track or experiencing center-line drift.

Technical Specifications

• Brand: Bihui

• Product Type: Large Format Electric Slab Rail Saw System

• Motor Power Rating: 1,500 Watts

• Power Supply Requirement: 230V / 50Hz

• Maximum Rotation Speed: 13,000 RPM

• Maximum Linear Cutting Length: 3.2 Metres (3,200 mm)

• Maximum Depth (90° Straight Cut): 17 mm

• Maximum Depth (45° Miter Bevel): 15 mm

• Rail Intercompatibility: Shares rails with Bihui Manual Slim Slab Cutters

• Certification: CE Approved Safety Standards

• Recommended Substrates: Large Format Porcelain Slabs, Sintered Stone, Ceramic Panels, Marble, and Granite

Buy online today for fast nationwide delivery across Ireland, or select Click & Collect to pick up your order directly from our Limerick showroom.
