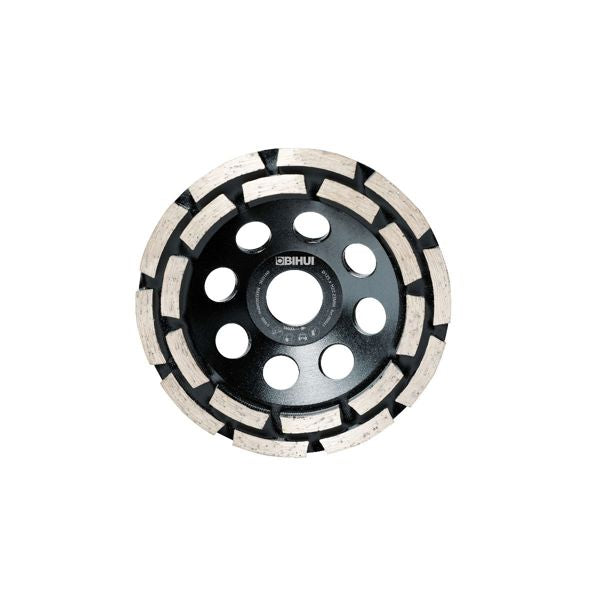

Bihui Pro Grind 5" (125mm) Dual Row Diamond Cup Wheel

The Bihui Pro Grind 5" (125mm) Dual Row Diamond Cup Wheel is a professional-grade, heavy-duty surface preparation tool engineered for high-impact material removal and rapid flattening. Featuring an aggressive double-row segment layout, this premium grinding wheel is highly recommended for levelling structural concrete slabs, stripping away stubborn old tile adhesives, and smoothing rough masonry surfaces. Optimized for both speed and durability, it delivers fast stock removal with minimal operator effort across a diverse range of dense building materials.

Why Choose the Bihui Pro Grind Dual Row Diamond Cup Wheel?

• Aggressive Double-Row Design: Engineered with two concentric rings of industrial-strength diamond segments. This configuration maximizes surface contact and pressure, enabling lightning-fast material removal, heavy stock grinding, and rapid floor preparation.

• Integrated Cooling Air Holes: The structural steel body is engineered with specialized ventilation cutouts. These air holes are highly optimized to aid air circulation, maintaining a cool, stable cutting pattern that prevents overheating and drastically reduces tool wear.

• Universal 5-Inch Fitting: Manufactured with a standard 125mm (5") diameter and a 22.23mm borehole, this grinding wheel mounts seamlessly onto all standard 5-inch angle grinders and specialized concrete surfers.

• High-Velocity Operational Safety: Rated for a maximum speed of up to 12,250 RPM, this robust wheel handles high-torque professional machinery effortlessly, ensuring smooth, vibration-free operation under heavy site loads.

• Broad Multi-Material Utility: This versatile grinding cup slices cleanly through tough surface layers and dense building aggregates, making it ideal for:

  • Cured concrete slabs, screeds, and rough foundations

  • Removing stubborn tile adhesive, thin-set, epoxy, and leveling compounds

  • Smoothing and shaping hard natural stones like granite and sandstone

  • Flattening brickwork, masonry blocks, and general building materials

Technical Specifications

• Brand: Bihui

• Product Line: Pro Grind Series

• Diameter: 5 Inches (125 mm)

• Bore Size: 22.23 mm

• Segment Configuration: Heavy-Duty Dual Row (Double Row)

• Maximum Rotation Speed: 12,250 RPM

• Cooling Feature: Integrated Air Ventilation Holes

• Working Mode: Dry Grinding (Compatible with Bihui Dust Catcher Shrouds)

• Recommended Substrates: Concrete, Granite, Sandstone, Tile Adhesive, and General Masonry
