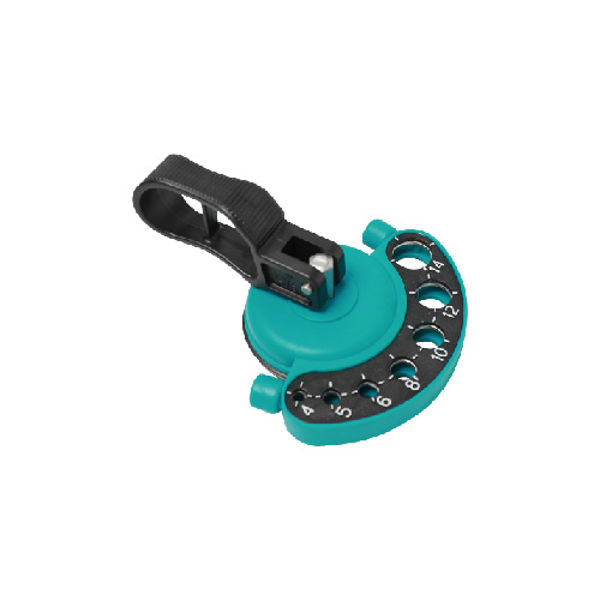

Bihui Universal Tile Hole Guide with Suction Cup

The Bihui Universal Hole Guide is a professional-grade, high-precision template tool engineered to ensure perfectly centered, drift-free drilling in dense modern tiles. Designed specifically for smaller diameter holes, this heavy-duty guide accommodates standard drill sizes including 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, and 14mm. It is highly prioritised by professional tilers, plumbers, and electricians who require absolute accuracy when drilling anchor holes for bathroom fixtures, plumbing pipes, or electrical conduits.

Why Choose the Bihui Universal Hole Guide?

• High-Quality Suction Pad: Equipped with a powerful, industrial-strength rubber vacuum cup, this tool is specialised to lock firmly onto smooth polished porcelain, ceramic, or glass surfaces. The secure seal completely eliminates slipping, ensuring your drill bit stays perfectly on its mark without skating or scratching the tile glaze.

• Integrated Steel Guide Plate: To ensure maximum precision and structural durability, the template features a solid steel core guide plate. This layout is specialised to resist wear from rotating diamond drill bits, keeping the guide holes perfectly true and unyielding over extended use.

• Rugged ABS & Nylon Construction: The main chassis is manufactured from high-impact ABS plastic, complemented by an ergonomic comfort nylon handle. This lightweight yet robust material configuration is optimised to withstand the damp, rugged environments of commercial tiling sites.

• Seven Built-In Drill Sizes: The multi-hole layout is highly optimised for universal compatibility, offering dedicated guide chambers for the most common residential and commercial fixing sizes: 4, 5, 6, 8, 10, 12, and 14mm.

• Protects Expensive Diamond Bits: By stabilizing the drill bit during the crucial initial penetration phase, the guide prevents off-center vibration. This is specialised to extend the service life of your diamond core drills while delivering crisp, chip-free hole perimeters.

Technical Specifications

• Brand: Bihui

• Product Type: Suction-Mounted Tile Hole Locating Guide

• Supported Drill Diameters: 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm

• Chassis Material: High-Impact ABS Plastic

• Guide Mechanism: Integrated Solid Steel Plate

• Handle Type: Ergonomic Heavy-Duty Nylon Grip

• Mounting Type: Heavy-Duty Rubber Mechanical Suction Cup

• Application: Precise Drilling in Porcelain, Ceramic, Marble, Granite, and Glass Tiles
