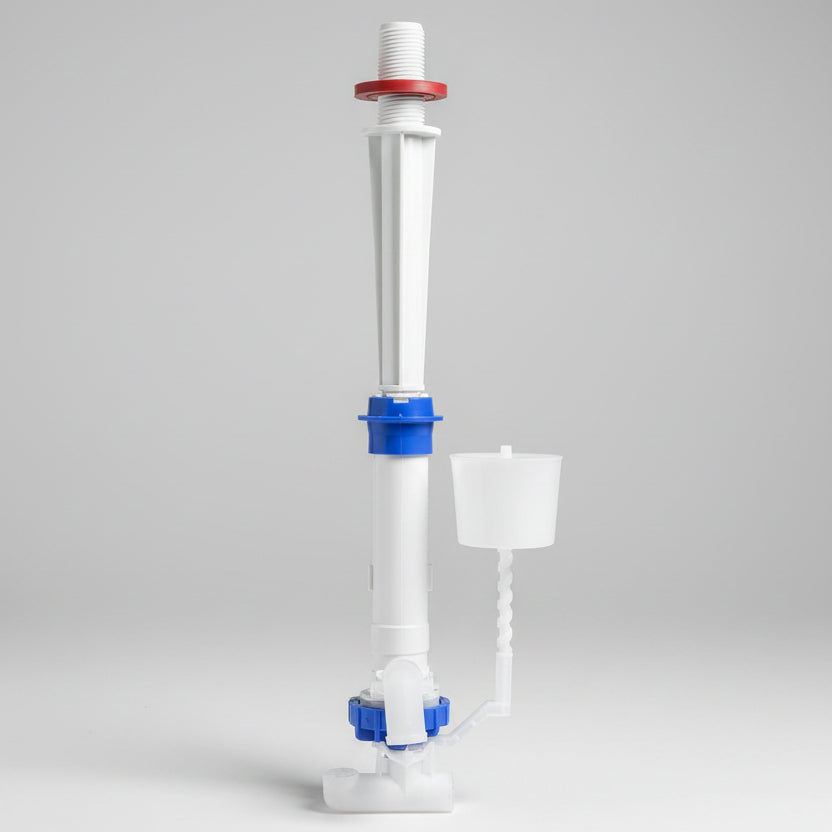

Torbeck Bottom Entry Ballvalve

This professional-grade equilibrium fill valve serves as the ultimate modern replacement for bulky, traditional brass arm ballvalves. Engineered with a minimal physical footprint, it drops effortlessly into the narrowest contemporary toilet tanks without rubbing against the cistern walls or jamming the flush mechanism. Capable of performing exceptionally well across both low and high-pressure water systems, it delivers an ultra-quiet fill cycle that eliminates the harsh water hammer noises commonly associated with older bathroom plumbing setup configurations.

Why Choose Section:

• Space-saving compact footprint makes it highly versatile, fitting easily into modern close-coupled, low-profile, or narrow concealed cistern designs.

• Fully adjustable telescopic height column allows the valve body to be modified between 8.5" and 12" to match your tank's exact water level requirements.

• Advanced anti-syphon internal mechanics actively prevent the backflow of cistern water into the mains supply, ensuring full structural compliance with WRAS standards.

• Multi-pressure compatibility includes interchangeable flow restrictors, allowing for fast, optimized refilling on low-pressure gravity systems down to 0.1 bar.

What is Included in This Pack?

• 1 x Torbeck Bottom Entry Adjustable Cistern Fill Valve

• 1 x Removable Internal Water Filtration Screen

• 1 x Set of High/Low Pressure Flow Restrictors

• 1 x Sealing Washer and Plastic Backnut

Technical Specifications:

• Brand: Torbeck (Fluidmaster)

• Water Inlet Position: Bottom Entry

• Inlet Connection Size: 1/2" BSP

• Height Adjustment Range: 220mm – 295mm (8.5 to 12 Inches)

• Minimum Operating Pressure: 0.1 Bar

• Noise Level Operational Rating: Ultra-Quiet (Below 60dB)

• Thread Material: High-impact structural polymer

Delivery & Collection: Buy online today for fast nationwide delivery, or select Click & Collect to pick up your order directly from our Limerick showroom.
